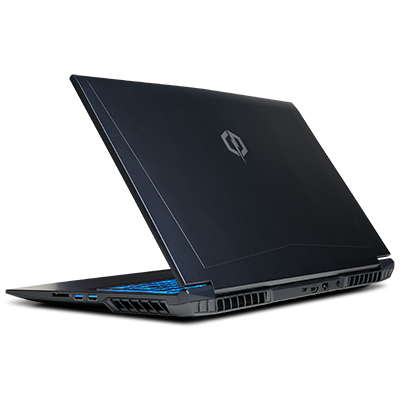

Specification / Features on Tracer V Gaming I17G Series

Features:

• Intel® Core™ i7-11800H Processor 8cores /16 threads 2.30GHz Turbo 4.6GHz 24MB Cache (Tiger Lake)

• High Performance NVIDIA^® GeForce^® GTX Series Graphics

Processor • Intel® Core™ i7-11800H Processor 8cores /16 threads 2.30GHz Turbo 4.6GHz 24MB Cache (Tiger Lake)

BIOS • AMI BIOS
• UEFI or Legacy BIOS support (menu selection)
• ACPI 5.0 compliant
• Support external USB flash memory card boot up

Chipset • Intel HM570

Graphics • NVIDIA^® GeForce^® GTX 1650 4GB GDDR6

LCD Display • 17.3" FHD, 16:9 (Narrow) - 1920x1080 Anti-Glare Displays LCD 144Hz

Web Camera • HD webcam with D-MIC

Memory • (2) SO-DIMM Memory Sockets (Up to 32GB total) DDR4 2933MHz

Storage • 2 Slots (NVMe) M.2 2280
• Slot 1: NVMe/PCIEX4
• Slot 2: NVMe/PCIEX4/SATAX1
• RAID 0/1 support

LAN • RTL8111GS-CG Supports 10/100/1000 Mb/Sec
• PCI-E interface
• DSM (Deep sleep mode) support

WLAN • Intel® Wi-Fi 6 AX201 with Bluetooth® 5.1

I/O Port • USB Type A @Right side x2:
• USB 3.1 (Gen1) X2 (Power off mode support USB power, but w/o bc1.2 protocol )
• USB Type A @Left side x1:
• USB 2.0 X1 (Power off mode support USB power, but w/o bc1.2 protocol )
• USB Type C x1 @Rear side x1
• USB 3.1 Gen2 + DP (Power off mode support USB power, but w/o bc1.2 protocol )
• HDMI port X1
• Mini DPX2
• RJ45 port X1
• Audio out & Mic inX2
• DC-inX1
• Kensington lockX1

• Card reader RTS 5170
*USB2 interface
*SD/SDHC/SDXC, UHS-50 speed
*Connecter: Full SD size

Audio • Realtek ALC274-CG
*Azalia standard support
*D3 mode support
*Smart AMP support
*Build-in 2 speakers

Keyboard • Full size Chicony 348mm KB (with numeric keys) with TF-designed separation- single zone RGB backlight support

Touch Pad • TP mylar
• Enable/Disable area :10mmx10mm
• Palm Rejection:Support

AC Adapter • Automatics Voltage adjustment between 100 and 240VAC 50/60Hz, 120 Watts, 3 Pins

Battery • 3 cells Li- polymer Battery, SW Gas Gauge IC, soft pack

Dimensions • 395.7*260.8*30.05mm

Weight • ~2.5kg +/- 5%
